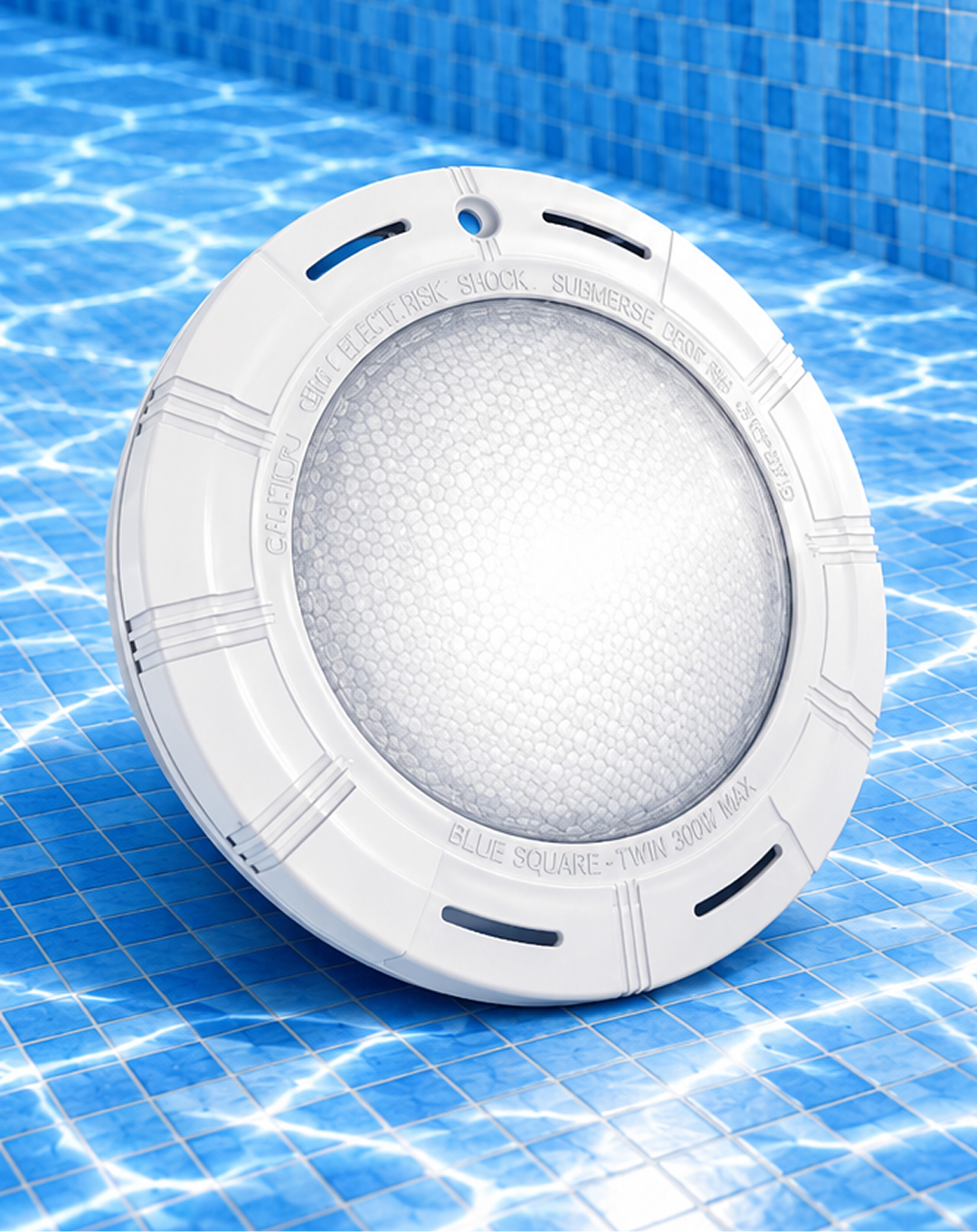

6” SPA LIGHT

The VUME retrofit, built for spas. Drops into standard 6” spa niches from the major brands and connects to the existing cable by hand.

Trim Ring
Metallic Grey▾
Cable Length
100 ft · ESP0100▾
Lumens
Up to 850
Color
RGB + W blend
Voltage
12-15V AC
Niche fit
Standard 6” spa
Certification
UL E476341
Check Compatibility
View Full Specs
Color temperature
4,000K
Lumens
850
Voltage
12-15V AC
Power consumption
30VA
Wattage
18W
Cable length
100 / 150 ft
Diameter
6 1/4”
Depth
2”
Certification
UL E476341
Keep the Cable
Connects to the existing low-voltage cable by hand.
Standard 6” Spa
Drop into standard 6” spa niches from Pentair, Jandy and Hayward. Metallic grey trim ring.
Matches the Pool
Same RGB+W engine and automation as the VUME pool lights, pool and spa stay in sync.

Sized for
the spa.

Built for the standard 6” spa niche and drops into Pentair, Jandy and Hayward spa fittings. Ships with a metallic grey trim ring.

+Standard 6” spa niche
+Pentair | Jandy | Hayward
+Metallic grey trim ring
+Seats properly, not skimmed-in

Connect
by hand.

The patented plug kit connects to your existing low-voltage cable by hand. Most spa retrofits reuse the wiring already there.

+Connects and disconnects by hand
+Reuses existing cable
+No rewiring required
Patented Plug Kit

Works out
of the box.

Multi-Program, pairs straight to Pentair, Jandy and Hayward alongside the matching pool light.

Pentair
Jandy
Hayward

Built to last, built to fit.

Every component is designed for longevity and performance, from the high-grade polymer housing to the precision-molded optics.

VUME 6” Spa Light
Compact Design
2” depth and 6 1/4” diameter for a truly flush finish.
Quick Connect
Patented plug system that attaches to the cable by hand.
Advanced Optics
Honeycomb lens pattern for wide, even light distribution.

Niche Compatibility, Standard 6” Spa

Controllers
Pentair (IntelliSync) | Jandy (iAquaLink) | Hayward (Omni / ColorLogic)
Niche size
Standard 6” spa niche
Spa fittings
Pentair (plastic and stainless) | Jandy (plastic) | Hayward (plastic)
Trim ring
Metallic grey, supplied
Cable
Connects to existing low-voltage cable by hand

FAQs

Will it fit my existing niche?
Yes, the 6” Spa Light is built for standard 6” spa niches and drops into Pentair (plastic and stainless), Jandy (plastic) and Hayward (plastic) spa fittings.
Do I have to replace the cable?
No. The patented plug kit connects to your existing low-voltage cable by hand, so most spa retrofits reuse the wiring already there.
Can I match it to my pool light?
Yes. It runs the same RGB+W color engine and the same automation compatibility as the VUME pool lights, so pool and spa stay in sync.
Does it work with my automation system?
Yes. Compatible with Pentair, Jandy and Hayward.
Is it certified for the US?
Yes. C/UL/US certified, UL file E476341, running on low voltage 12-15V AC.
How bright is it, and does it do color?
Up to 850 lumens with RGB+W color blending.

Downloadables

Spec Sheet (PDF)

Download

Product Brochure

Download

Installations Manual

Download

Register Your Warranty

Download

Get the 6” Spa Light

Find an authorized dealer near you or view the full specs.
